The following adjustment instructions apply to Anselmi AN 140 3D, AN 160 3D, AN 180 3D concealed hinges series.

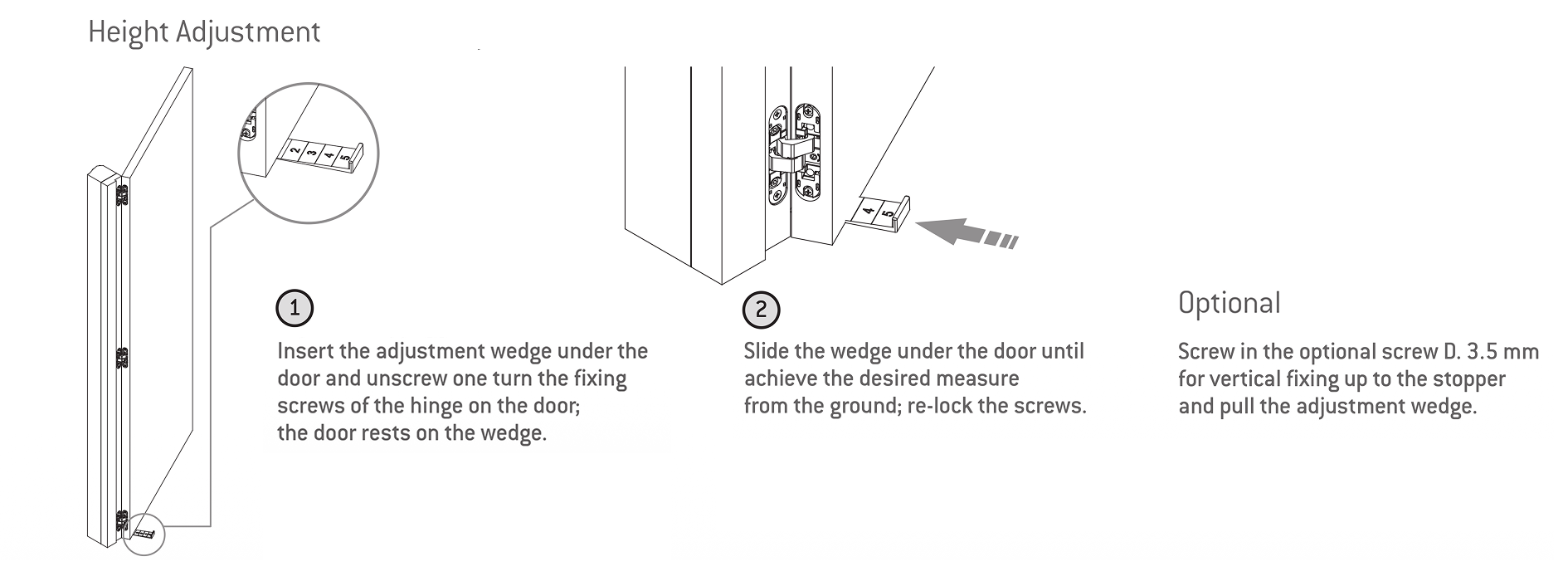

Insert the adjustment wedge under the door and unscrew (one turn only) the fixing screws of the hinge on the door leaf; the door rests on the wedge.
Slide the wedge under the door until you achieve the desired distance (undercut) from the floor; re-fasten the screws.
Optional — Screw in the optional screw D (3.5 mm) to secure the door vertically, then remove the adjustment wedge.

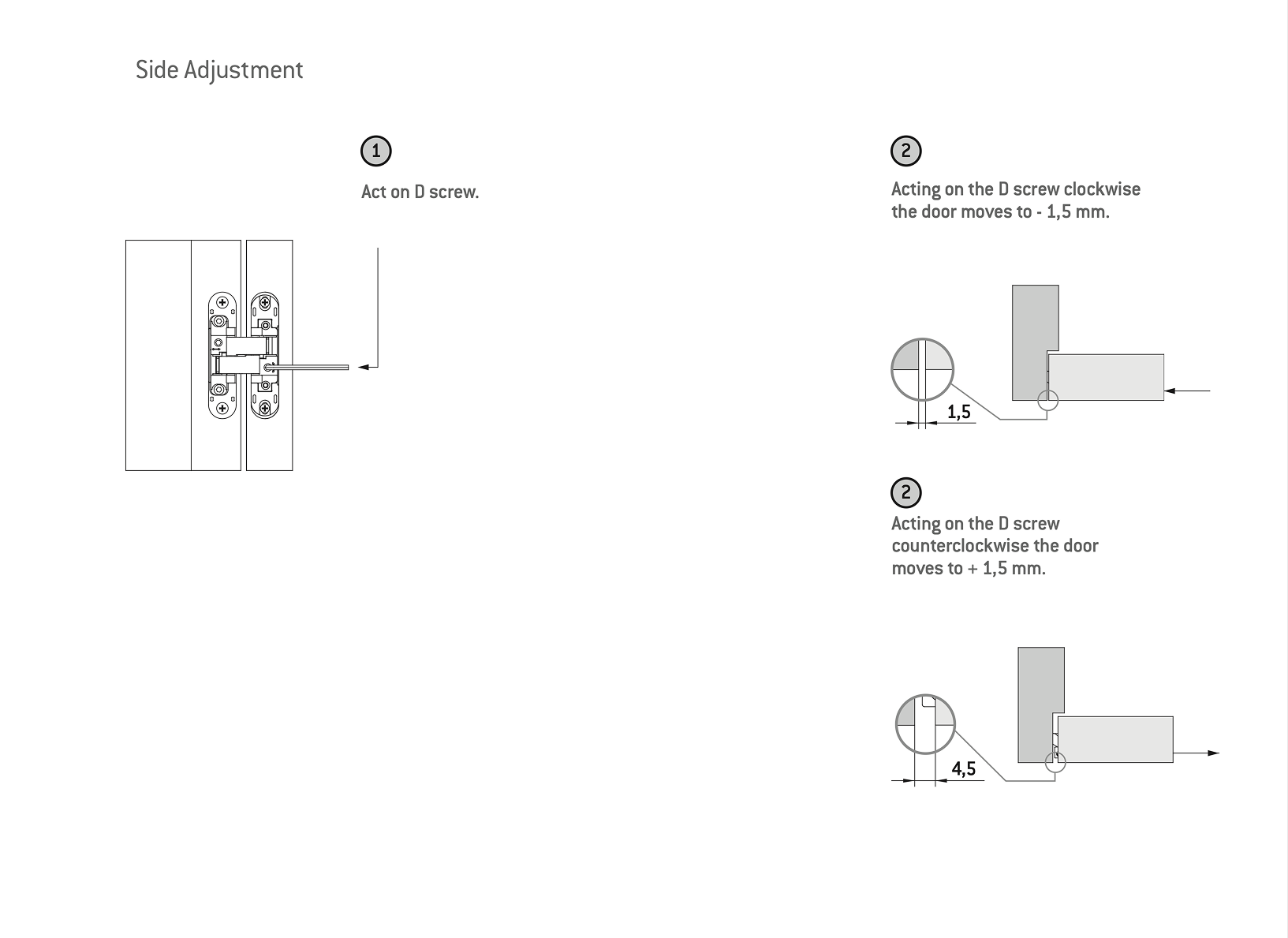

Side adjustment of Anselmi hinges is done using the "D" bolt. The hex socket bolt allows you to move the door side to side by 3 mm.
Adjust the depth of Anselmi concealed hinges using the "C" and "E" bolts. First, loosen the "C" bolts one turn. Then adjust the depth using the "E" bolt (you have 2 mm, which is roughly 1/16", to play with). Once done, tighten both "C" bolts to secure the position.
