Assa Abloy DC840 Installation

Assa Abloy DC840 self closer - box contents

Contents

  1. Assa Abloy DC840 on your Dorsis Fortius door consists on three key components:
    - Track
    - Arm
    - Body
  2. Optionally, you may have a hold-open device, which sits inside the track.

Installation

  1. Typically, the self closer body comes factory-installed in your Dorsis Fortius door leaf.
  2. Similarly, the track is typically pre-installed in the header jamb of your Dorsis Fortius door frame.
  3. You will need to install the arm connecting the self-closer body and the track.

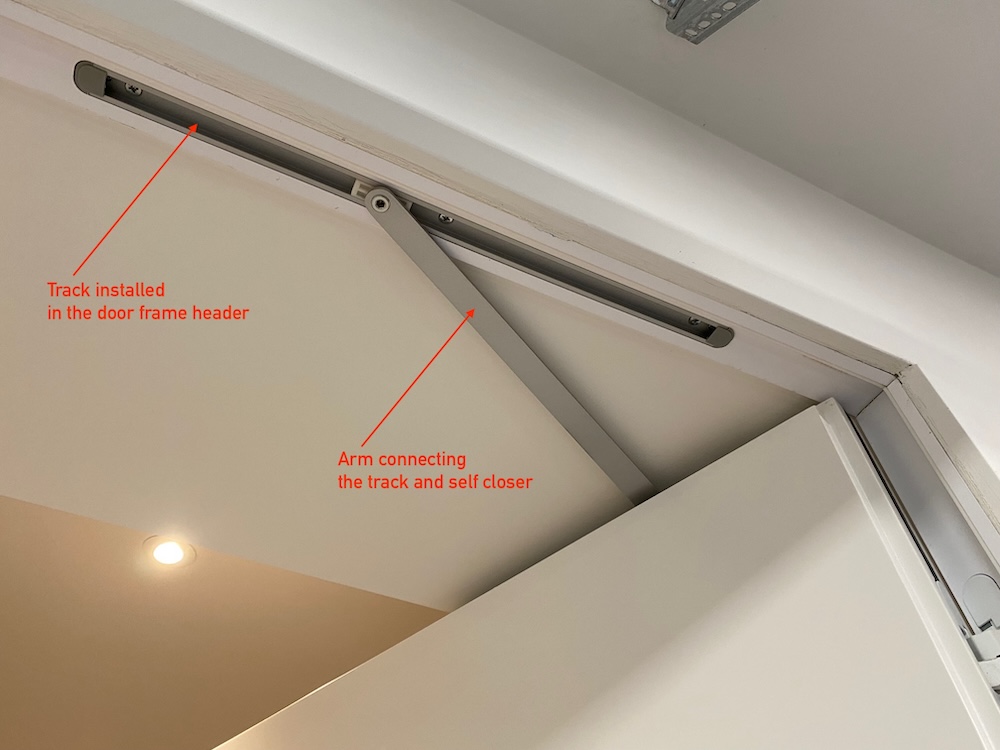

Assa Abloy DC840 self closer.

Adjustments

  1. There are three adjustments possible with the Assa Abloy DC840 self closer. Consult the included manual.

Concealed door closer

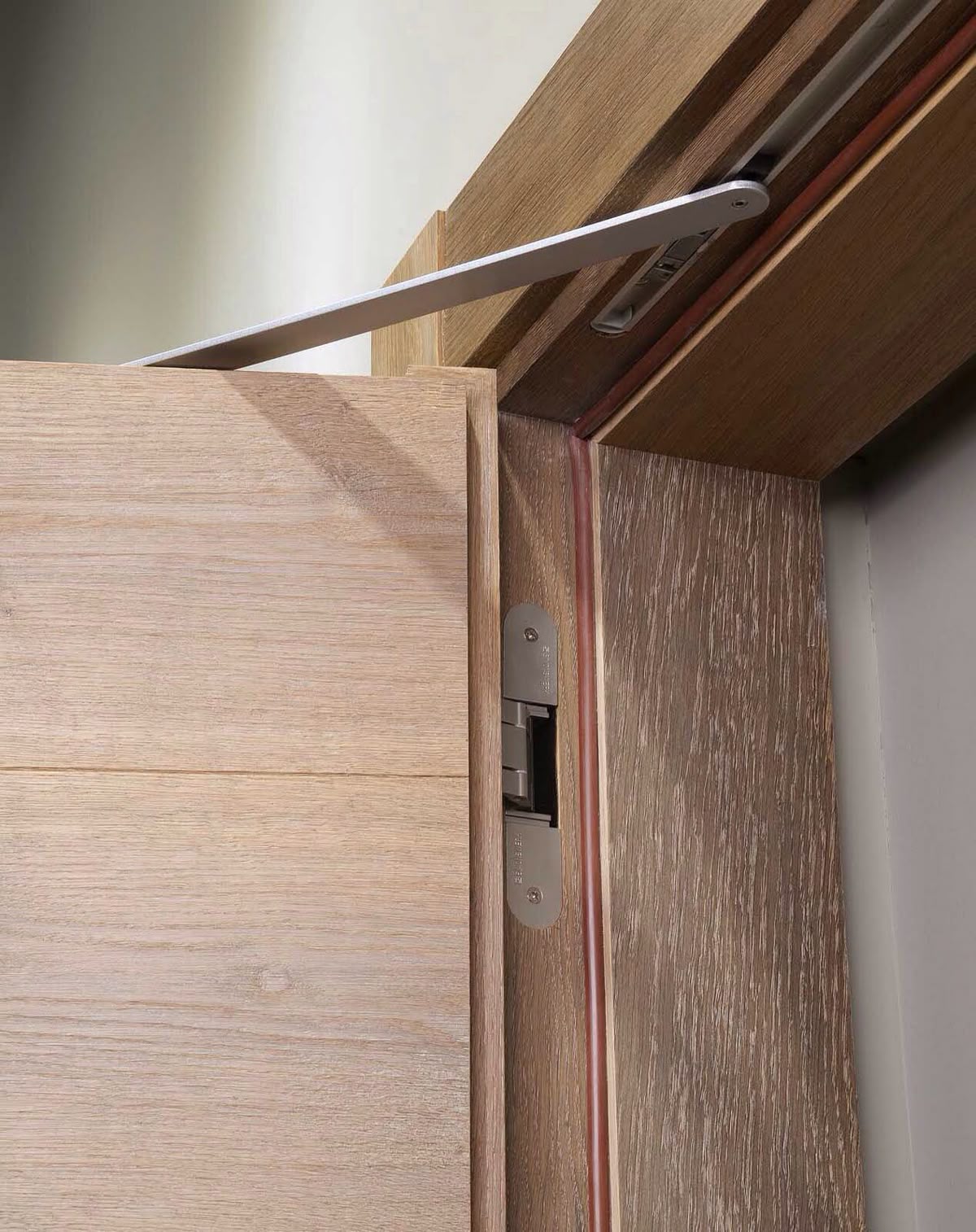

Assa Abloy concealed door closer on an outswing wood veneer door with Simonswerk Tectus silver concealed hinges.

Assa Abloy concealed door closer on an outswing door with Tectus concealed hinges.

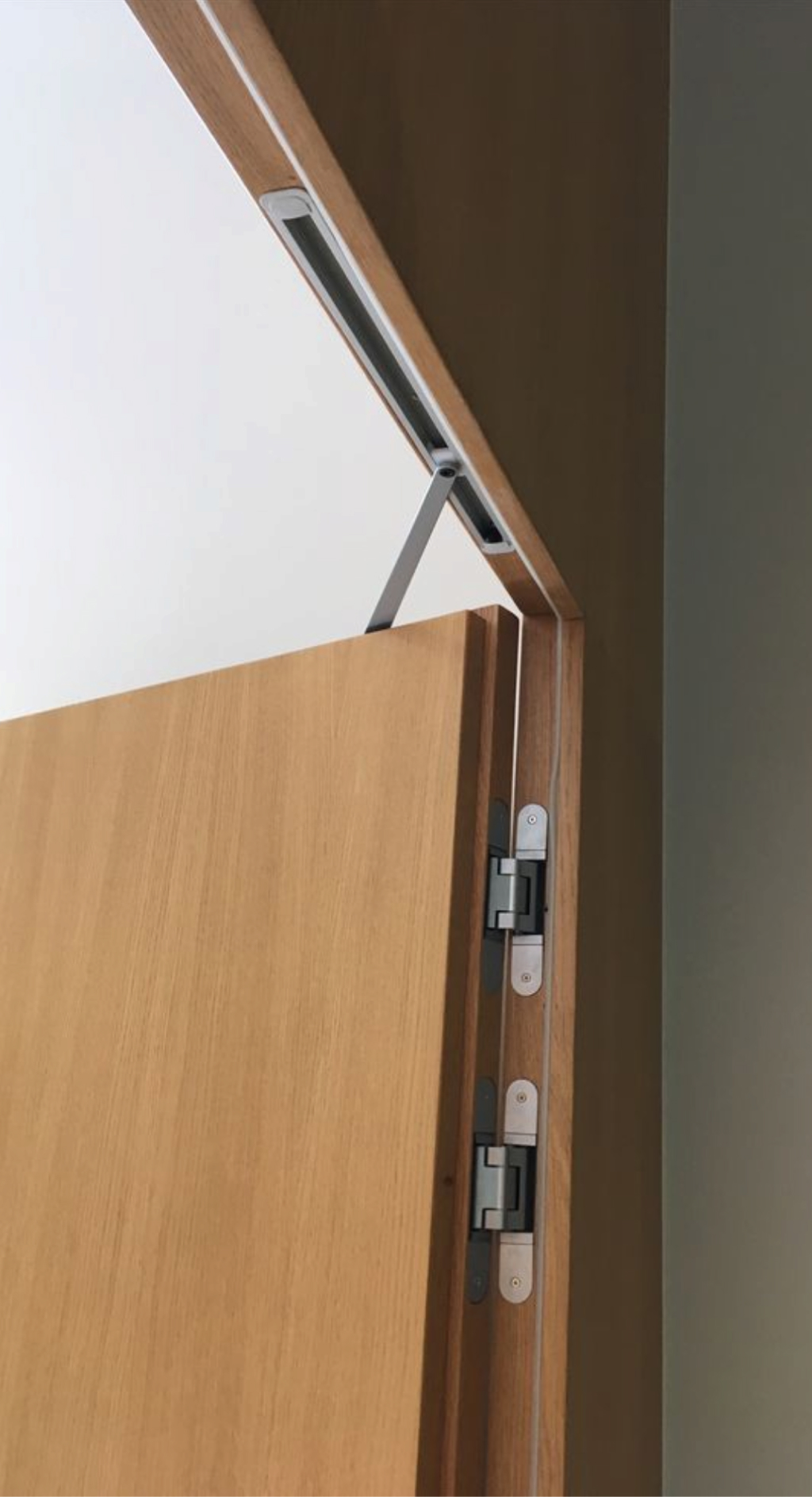

Assa Abloy concealed door closer on an inswing wood veneer door with double Simonswerk Tectus concealed hinges in satin nickel finish.

Assa Abloy concealed door closer on an inswing wood veneer door with double Tectus concealed hinges.

Download

We will gladly assist you with your planning with the Dorsis Belport trimless pocket doors and provide your project architect or designer with interior door shop drawings for inclusion in your Construction Documents (CD).

Adobe PDF file icon
Assa Abloy DC840 Installation Instructions (PDF)
